Full color advertising video billboard p2.976 led screen for advertising led display
Function and Technology Character Introduction:
1, Use advanced processing technology, guarantee for high-quality and long lifetime products
2, Low budget, high pixel density, more vivid and stable pictures (No Flickering)
3, Can be normally used under the temperature between -35℃ and +65℃ .
4, Energy-saving, environmentally friendly, cost-effective, the LED display luminescent material itself is an energy-saving product, equipped with a dedicated constant current drive, energy-saving IC and high conversion rate drive power, and the brightness can be automatically adjusted.
Products Applications:

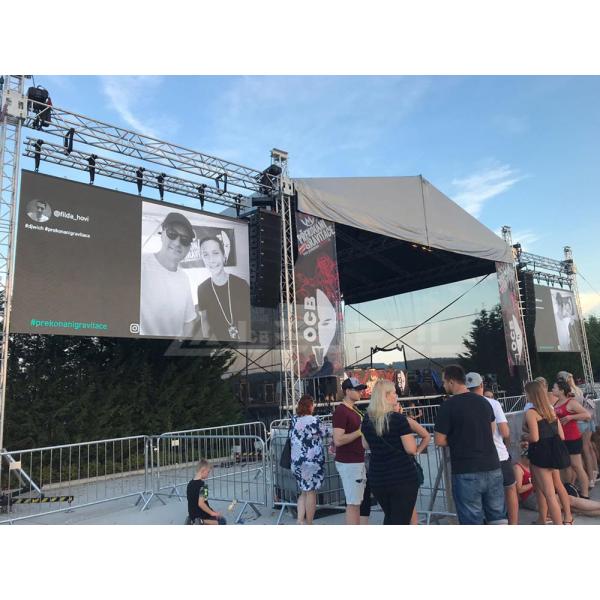

widely used in large stadiums, train waiting rooms, live TV, exhibition venues, performing arts centers, entertainment venues, large-scale cultural evenings, concerts, etc.
SPECIFICATIONS Parameters:
| Pixel pitch (mm) | P2.976 |
| Module size(mm) | 250X250mm |
| Pixel density (point /㎡) | 112896 |
| Module resolution (WxH) | 84X84 |
| Pixel structure | SMD2020 |
| scanning method | 1/21 |
| Refresh rate (Hz) | ≥3840Hz |
| White balance brightness (nits) | ≥1200 |
| Color temperature (K) | 3200-9300Adjustable |
| Gray scale | 14bit |
| Frame change frequency | 60Hz |
| Viewing angle (horizontal/vertical°) | 140/140 |
| Protection level (front/back) | IP31/IP43 |
| Power consumption (peak/average W/㎡) | 600/200 |
weiye R2 series led strip display screen advantage:
1, Use TG (170 ℃) immersion golden S1000-2 substrate to ensure that no deformation of PCB board.
2, O ne for all applications, indoor & outdoor, fixed & rental
3, One person fast installation design, help to save labor cost
4, The die-cast aluminum casing is created with high-precision machining, ensuring complete panel flatness.
5, The SMD (3-in-1) LED package provides wider viewing angles and extremely close viewing distances.
Product Tags:
|
|
SMD2020 Video Billboard Advertising / P2.976 Led Screen For Advertising Images
|
